Ice Mold Options

Hongtai is a professional manufacturer of ice cream making molds used in all kinds of machinery. We have developed more than 1200 different mold types of various shapes and sizes. Below you will see a list of mold models and their dimensions. If you require products with specifications that are not listed among our mold cups, we can also provide custom services upon request.

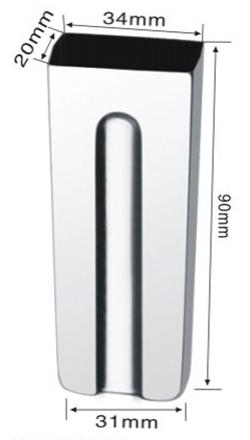

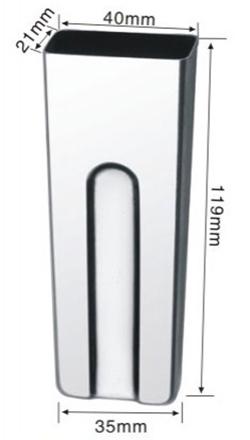

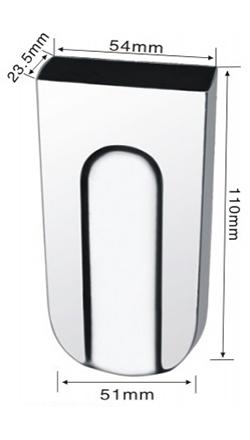

Type1: One Groove Stainless Steel Ice Mold

  • MOD8020
    CAPACITY MAX =87ml
    FILL LINE 6mm =81ml
    FILL LINE 20mm =72ml

  • MOD8089
    CAPACITY MAX =55ml
    FILL LINE 6mm =50ml
    FILL LINE 20mm =40ml

  • MOD8090
    CAPACITY MAX =90ml
    FILL LINE 6mm =84ml
    FILL LINE 20mm =72ml

  • MOD8167
    CAPACITY MAX =115ml
    FILL LINE 6mm =104ml
    FILL LINE 20mm =89ml

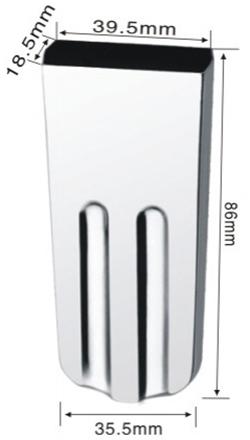

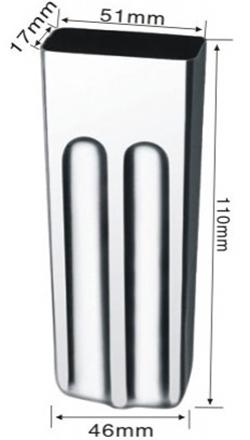

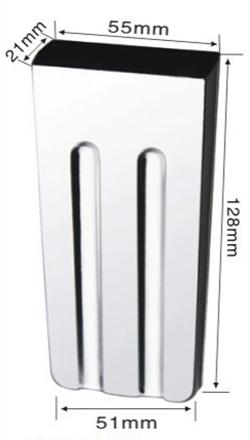

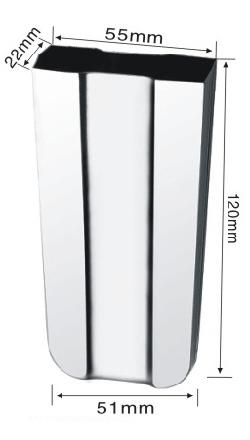

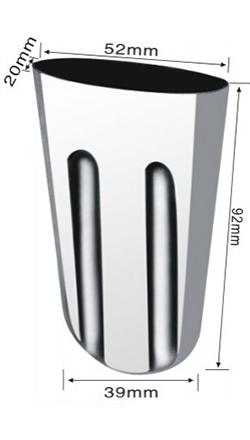

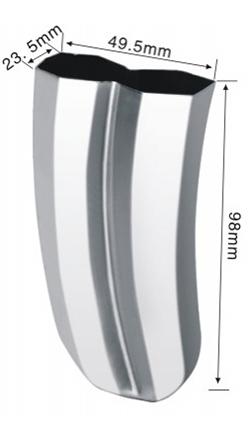

Type2: Two Grooves Stainless Steel Ice Mold

  • MOD8001
    CAPACITY MAX =125ml
    FILL LINE 6mm =117ml
    FILL LINE 20mm =100ml

  • MOD8021
    CAPACITY MAX =64ml
    FILL LINE 6mm =60ml
    FILL LINE 20mm =50ml

  • MOD8047
    CAPACITY MAX =54ml
    FILL LINE 6mm =50ml
    FILL LINE 20mm =40ml

  • MOD8158
    CAPACITY MAX =50ml
    FILL LINE 6mm =46ml
    FILL LINE 20mm =35ml

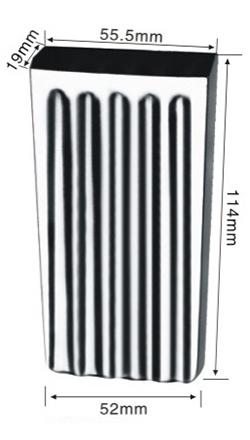

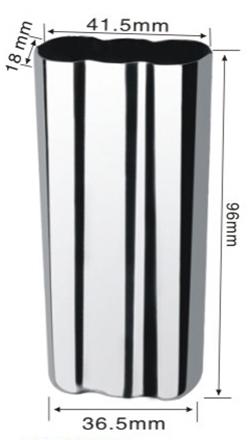

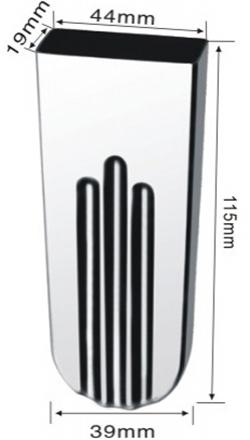

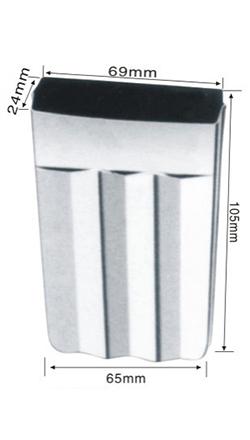

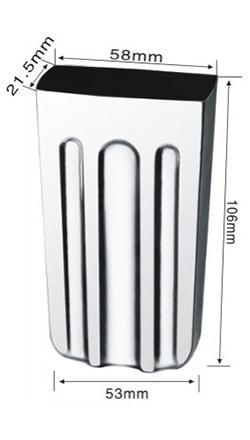

Type3: Multi Grooves Stainless Steel Ice Mold

  • MOD8057
    CAPACITY MAX =113ml
    FILL LINE 6mm =103ml
    FILL LINE 20mm =85ml

  • MOD8096
    CAPACITY MAX =106ml
    FILL LINE 6mm =98ml
    FILL LINE 20mm =87ml

  • MOD8210
    CAPACITY MAX =80ml
    FILL LINE 6mm =75ml
    FILL LINE 20mm =65ml

  • MOD8237
    CAPACITY MAX =137ml
    FILL LINE 6mm =127ml
    FILL LINE 20mm =104ml

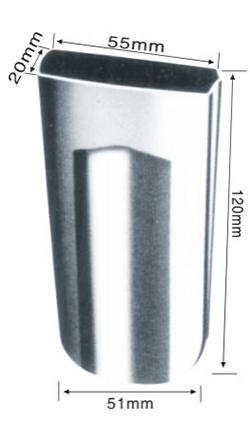

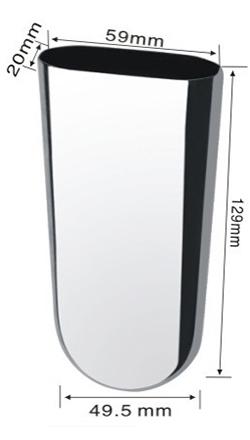

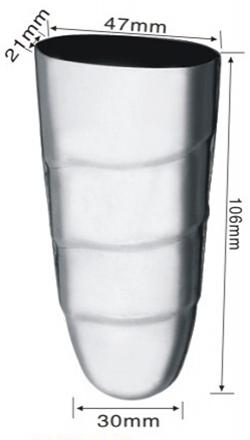

Type4: Round Edge Stainless Steel Ice Mold

  • MOD8006
    CAPACITY MAX=120ml
    FILLLINE6mm =114ml
    FILL LINE 20mm=97ml

  • MOD8011
    CAPACITY MAX =114ml
    FILL LINE 6mm =105ml
    FILL LINE 20mm =91ml

  • MOD8019
    CAPACITY MAX =110ml
    FILL LINE 6mm =104ml
    FILL LINE 20mm =92ml

  • MOD8037
    CAPACITY MAX =58ml
    FILL LINE 6mm =54ml
    FILL LINE 20mm =45ml

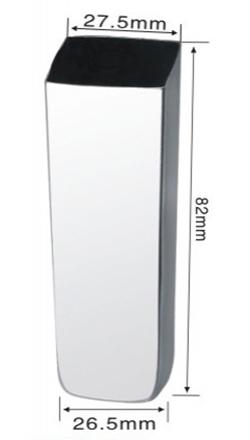

Type5: Flat Type Stainless Steel Ice Mold

  • MOD8024
    CAPACITY MAX =73ml
    FILL LINE 6mm =68ml
    FILL LINE 20mm =57ml

  • MOD8050
    CAPACITY MAX =110ml
    FILL LINE 6mm =101ml
    FILL LINE 20mm =88ml

  • MOD8066
    CAPACITY MAX =60ml
    FILL LINE 6mm =54ml
    FILL LINE 20mm =46ml

  • MOD8081
    CAPACITY MAX =128ml
    FILL LINE 6mm =120ml
    FILL LINE 20mm =106ml

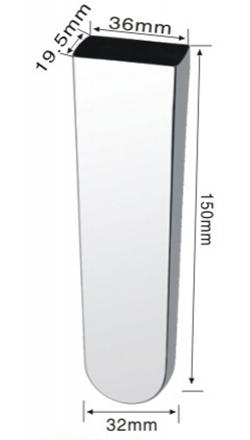

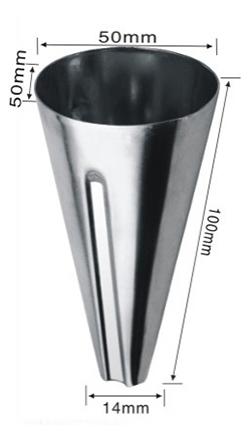

Type6: Long Thin Type Stainless Steel Ice Mold

  • MOD8135
    CAPACITY MAX =100ml
    FILL LINE 6mm =96ml
    FILL LINE 20mm =81ml

  • MOD8253
    CAPACITY MAX =74ml
    FILL LINE 6mm =70m
    FILL LINE 20mm =60ml

  • MOD8294
    CAPACITY MAX =93ml
    FILL LINE 6mm =88ml
    FILL LINE 20mm =78ml

  • MOD8276
    CAPACITY MAX =65ml
    FILL LINE 6mm =61ml
    FILL LINE 20mm =53ml

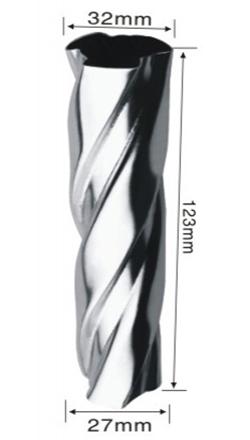

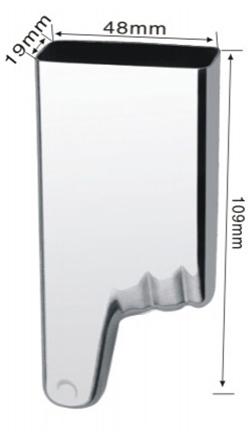

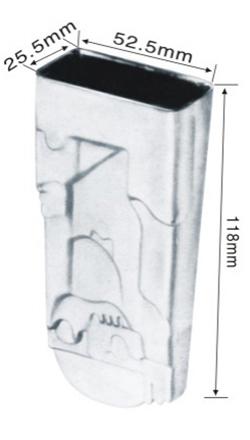

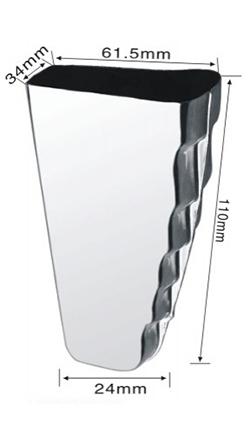

Type7: Shaped Type Stainless Steel Ice Mold

  • MOD8224
    CAPACITY MAX =105ml
    FILL LINE 6mm =98ml
    FILL LINE 20mm =83ml

  • MOD8459
    CAPACITY MAX =73ml
    FILL LINE 6mm =67ml
    FILL LINE 20mm =54ml

  • MOD8462
    CAPACITY MAX =65ml
    FILL LINE 6mm =60ml
    FILL LINE 20mm =50ml

  • MOD8463
    CAPACITY MAX =87ml
    FILL LINE 6mm =75ml
    FILL LINE 20mm =53ml

  • MOD8473
    CAPACITY MAX =74ml
    FILL LINE 6mm =68ml
    FILL LINE 20mm =55ml

  • MOD8477
    CAPACITY MAX =130ml
    FILL LINE 6mm =120ml
    FILL LINE 20mm =96ml

  • MOD8490
    CAPACITY MAX =130ml
    FILL LINE 6mm =121ml
    FILL LINE 20mm =97ml

  • MOD8526
    CAPACITY MAX =101.5ml
    FILL LINE 6mm =97.5ml
    FILL LINE 20mm =78ml

Remarks:
Fill line indicates the distance from the top of the mold cup to the water line. The capacity tolerance of all mold cups is ±2cc.
