Single Groove Stainless Steel Stick Ice Cream Making Mold

Hongtai is a professional manufacturer of ice cream making molds used in all kinds of machinery. We have developed more than 1200 different mold types of various shapes and sizes. Below you will see a list of single groove stainless steel stick ice cream making molds and their dimensions. If you require products with specifications that are not listed among our mold cups, we can also provide custom services upon request.

  • MOD8020 Ice Cream Mold
    CAPACITY MAX =87ml
    FILL LINE 6mm =81ml
    FILL LINE 20mm =72ml

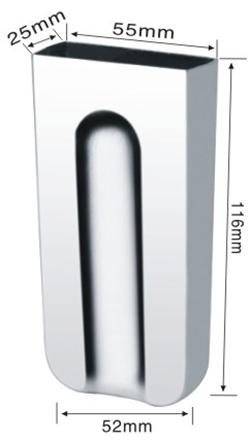

  • MOD8022 Ice Cream Mold
    CAPACITY MAX =64ml
    FILL LINE 6mm =60ml
    FILL LINE 20mm =50ml

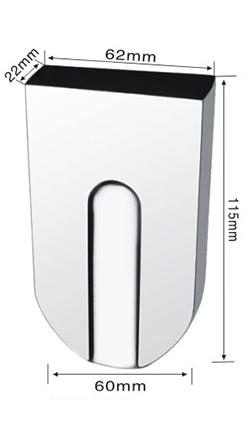

  • MOD8031 Ice Cream Mold
    CAPACITY MAX =80ml
    FILL LINE 6mm =75ml
    FILL LINE 20mm =63ml

  • MOD8051 Ice Cream Mold
    CAPACITY MAX =138ml
    FILL LINE 6mm =128ml
    FILL LINE 20mm =110ml

  • MOD8062 Ice Cream Mold
    CAPACITY MAX =117ml
    FILL LINE 6mm =109ml
    FILL LINE 20mm =92ml

  • MOD8063 Ice Cream Mold
    CAPACITY MAX =108ml
    FILL LINE 6mm =100ml
    FILL LINE 20mm =84ml

  • MOD8068 Ice Cream Mold
    CAPACITY MAX =59ml
    FILL LINE 6mm =54ml
    FILL LINE 20mm =44ml

  • MOD8069 Ice Cream Mold
    CAPACITY MAX =60ml
    FILL LINE 6mm =55ml
    FILL LINE 20mm =46ml

  • MOD8079 Ice Cream Mold
    CAPACITY MAX =54ml
    FILL LINE 6mm =50ml
    FILL LINE 20mm =41ml

  • MOD8084 Ice Cream Mold
    CAPACITY MAX =100ml
    FILL LINE 6mm =95ml
    FILL LINE 20mm =81ml

  • MOD8089 Ice Cream Mold
    CAPACITY MAX =55ml
    FILL LINE 6mm =50ml
    FILL LINE 20mm =40ml

  • MOD8090 Ice Cream Mold
    CAPACITY MAX =90ml
    FILL LINE 6mm =84ml
    FILL LINE 20mm =72ml

  • MOD8107 Ice Cream Mold
    CAPACITY MAX =126ml
    FILL LINE 6mm =118ml
    FILL LINE 20mm =97ml

  • MOD8130 Ice Cream Mold
    CAPACITY MAX =76ml
    FILL LINE 6mm =68ml
    FILL LINE 20mm =55ml

  • MOD8133 Ice Cream Mold
    CAPACITY MAX =130ml
    FILL LINE 6mm =124ml
    FILL LINE 20mm =118ml

  • MOD8142 Ice Cream Mold
    CAPACITY MAX =97ml
    FILL LINE 6mm =89ml
    FILL LINE 20mm =75ml

  • MOD8152 Ice Cream Mold
    CAPACITY MAX =90ml
    FILL LINE 6mm =84ml
    FILL LINE 20mm =71ml

  • MOD8155 Ice Cream Mold
    CAPACITY MAX =95ml
    FILL LINE 6mm =90ml
    FILL LINE 20mm =79ml

  • MOD8162 Ice Cream Mold
    CAPACITY MAX =122ml
    FILL LINE 6mm =116ml
    FILL LINE 20mm =101ml

  • MOD8167 Ice Cream Mold
    CAPACITY MAX =115ml
    FILL LINE 6mm =104ml
    FILL LINE 20mm =89ml

  • MOD8171 Ice Cream Mold
    CAPACITY MAX =109ml
    FILL LINE 6mm =101ml
    FILL LINE 20mm =89ml

  • MOD8172 Ice Cream Mold
    CAPACITY MAX =143ml
    FILL LINE 6mm =135ml
    FILL LINE 20mm =117ml

  • MOD8183 Ice Cream Mold
    CAPACITY MAX =130ml
    FILL LINE 6mm =123ml
    FILL LINE 20mm =101ml

  • MOD8185 Ice Cream Mold
    CAPACITY MAX =83ml
    FILL LINE 6mm =78ml
    FILL LINE 20mm =63ml

  • MOD8187 Ice Cream Mold
    CAPACITY MAX =110ml
    FILL LINE 6mm =100ml
    FILL LINE 20mm =85ml

  • MOD8188 Ice Cream Mold
    CAPACITY MAX =75ml
    FILL LINE 6mm =69ml
    FILL LINE 20mm =56ml

  • MOD8189 Ice Cream Mold
    CAPACITY MAX =113ml
    FILL LINE 6mm =104ml
    FILL LINE 20mm =90ml

  • MOD8191 Ice Cream Mold
    CAPACITY MAX =75ml
    FILL LINE 6mm =69ml
    FILL LINE 20mm =57ml

  • MOD8193 Ice Cream Mold
    CAPACITY MAX =58ml
    FILL LINE 6mm =53ml
    FILL LINE 20mm =44ml

  • MOD8201 Ice Cream Mold
    CAPACITY MAX =85ml
    FILL LINE 6mm =80ml
    FILL LINE 20mm =68ml

  • MOD8203 Ice Cream Mold
    CAPACITY MAX =131ml
    FILL LINE 6mm =125ml
    FILL LINE 20mm =108ml

  • MOD8204 Ice Cream Mold
    CAPACITY MAX =118ml
    FILL LINE 6mm =110ml
    FILL LINE 20mm =95ml

  • MOD8209 Ice Cream Mold
    CAPACITY MAX =55ml
    FILL LINE 6mm =50ml
    FILL LINE 20mm =41ml

  • MOD8219 Ice Cream Mold
    CAPACITY MAX =91ml
    FILL LINE 6mm =86ml
    FILL LINE 20mm =70ml

  • MOD8231 Ice Cream Mold
    CAPACITY MAX =100ml
    FILL LINE 6mm =92ml
    FILL LINE 20mm =75ml

  • MOD8252 Ice Cream Mold
    CAPACITY MAX =54ml
    FILL LINE 6mm =51ml
    FILL LINE 20mm =43ml

  • MOD8261 Ice Cream Mold
    CAPACITY MAX =90ml
    FILL LINE 6mm =85ml
    FILL LINE 20mm =74ml

  • MOD8268 Ice Cream Mold
    CAPACITY MAX =108ml
    FILL LINE 6mm =115ml
    FILL LINE 20mm =94ml

  • MOD8269 Ice Cream Mold
    CAPACITY MAX =104ml
    FILL LINE 6mm =99ml
    FILL LINE 20mm =87ml

  • MOD8270 Ice Cream Mold
    CAPACITY MAX =107ml
    FILL LINE 6mm =100ml
    FILL LINE 20mm =88ml

  • MOD8279 Ice Cream Mold
    CAPACITY MAX =47ml
    FILL LINE 6mm =44ml
    FILL LINE 20mm =37ml

  • MOD8281 Ice Cream Mold
    CAPACITY MAX =62ml
    FILL LINE 6mm =58ml
    FILL LINE 20mm =50ml

  • MOD8295 Ice Cream Mold
    CAPACITY MAX =103ml
    FILL LINE 6mm =97ml
    FILL LINE 20mm =89ml

  • MOD8303 Ice Cream Mold
    CAPACITY MAX =110ml
    FILL LINE 6mm =103ml
    FILL LINE 20mm =90ml

  • MOD8321 Ice Cream Mold
    CAPACITY MAX =55ml
    FILL LINE 6mm =51ml
    FILL LINE 20mm =44ml

  • MOD8322 Ice Cream Mold
    CAPACITY MAX =125ml
    FILL LINE 6mm =117ml
    FILL LINE 20mm =101ml

  • MOD8333 Ice Cream Mold
    CAPACITY MAX =75ml
    FILL LINE 6mm =69ml
    FILL LINE 20mm =57ml

  • MOD8351 Ice Cream Mold
    CAPACITY MAX =60ml
    FILL LINE 6mm =55ml
    FILL LINE 20mm =47ml

  • MOD8374 Ice Cream Mold
    CAPACITY MAX =65ml
    FILL LINE 6mm =59ml
    FILL LINE 20mm =47ml

  • MOD8375 Ice Cream Mold
    CAPACITY MAX =63ml
    FILL LINE 6mm =58ml
    FILL LINE 20mm =48ml

  • MOD8376 Ice Cream Mold
    CAPACITY MAX =114ml
    FILL LINE 6mm =105ml
    FILL LINE 20mm =90ml

  • MOD8380 Ice Cream Mold
    CAPACITY MAX =110ml
    FILL LINE 6mm =102ml
    FILL LINE 20mm =89ml

  • MOD8384 Ice Cream Mold
    CAPACITY MAX =146ml
    FILL LINE 6mm =139ml
    FILL LINE 20mm =118ml

  • MOD8385 Ice Cream Mold
    CAPACITY MAX =73ml
    FILL LINE 6mm =68ml
    FILL LINE 20mm =57ml

  • MOD8431 Ice Cream Mold
    CAPACITY MAX =108ml
    FILL LINE 6mm =99ml
    FILL LINE 20mm =84ml

  • MOD8436 Ice Cream Mold
    CAPACITY MAX =145ml
    FILL LINE 6mm =137ml
    FILL LINE 20mm =122ml

  • MOD8437 Ice Cream Mold
    CAPACITY MAX =60ml
    FILL LINE 6mm =55ml
    FILL LINE 20mm =47ml

  • MOD8443 Ice Cream Mold
    CAPACITY MAX =146ml
    FILL LINE 6mm =139ml
    FILL LINE 20mm =118ml

  • MOD8451 Ice Cream Mold
    CAPACITY MAX =54ml
    FILL LINE 6mm =50ml
    FILL LINE 20mm =41ml

  • MOD8453 Ice Cream Mold
    CAPACITY MAX =58ml
    FILL LINE 6mm =53ml
    FILL LINE 20mm =43ml

Remarks:
Fill line indicates the distance from the top of the mold cup to water line. The capacity tolerance of all mold cups is ±2cc.
