24 Lane Stick Ice Cream Equipment Combined Stainless Steel Ice Pop Mold

Description
Thestainless steel ice pop mold is 24 lanes wide, making it suitable for in-line ice cream equipment in order to support fully automatic, mass production of ice cream.

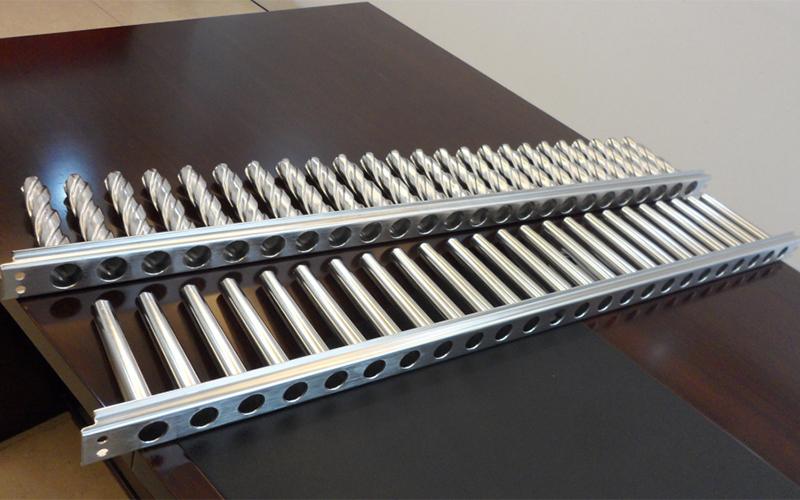

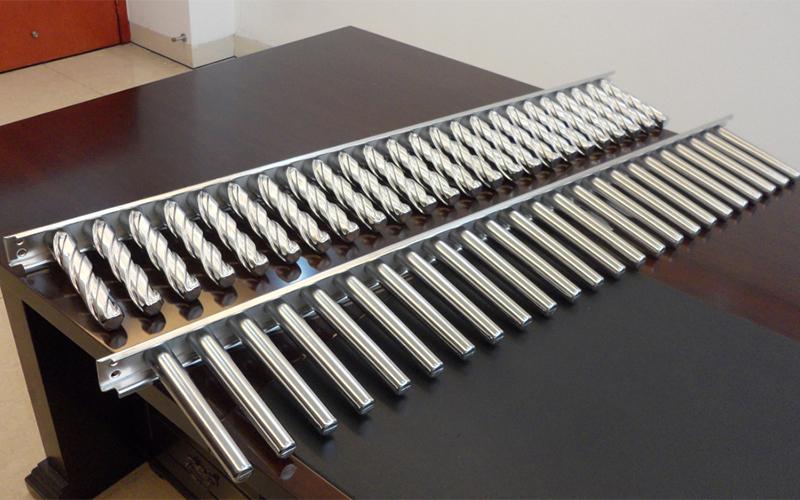

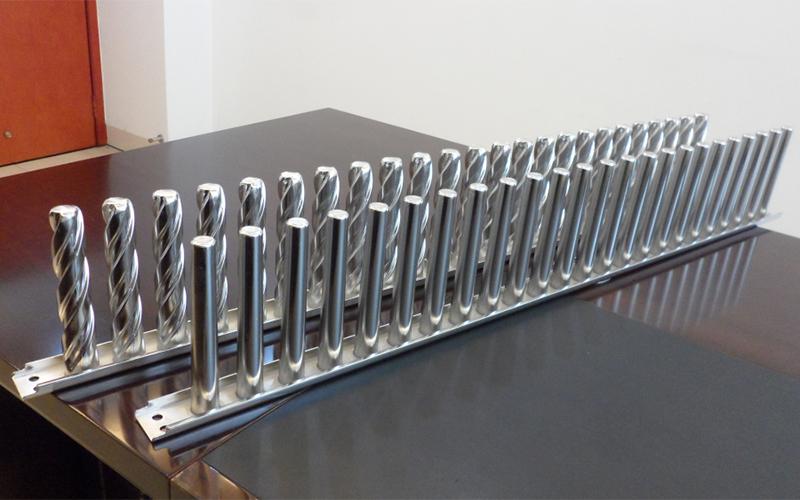

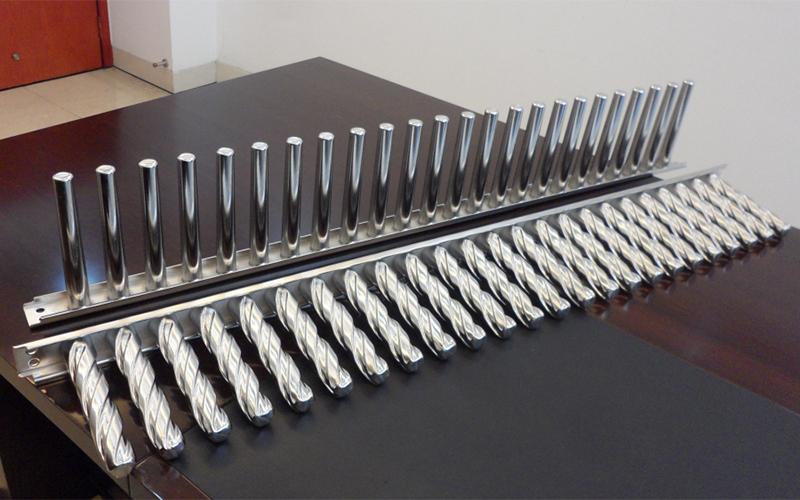

Th combined inline stick ice cream making mold is composed of different mold shapes. Ice cream production requires that the two molds coordinate perfectly with each other, and meet strict requirements for mold size and precision.

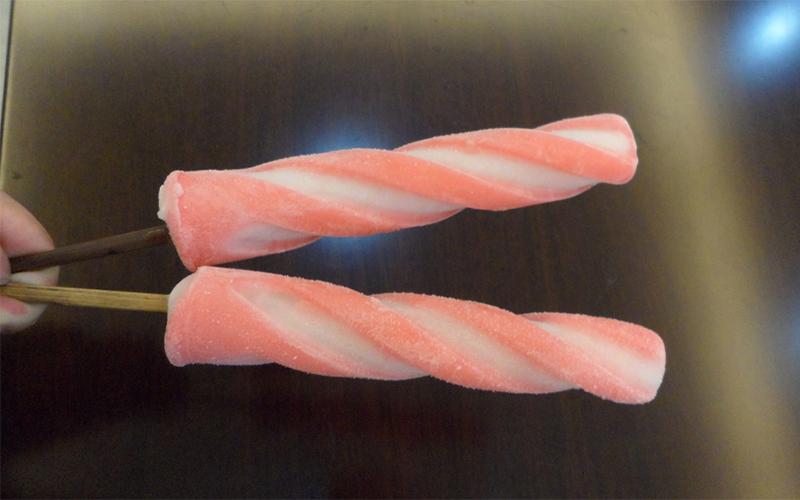

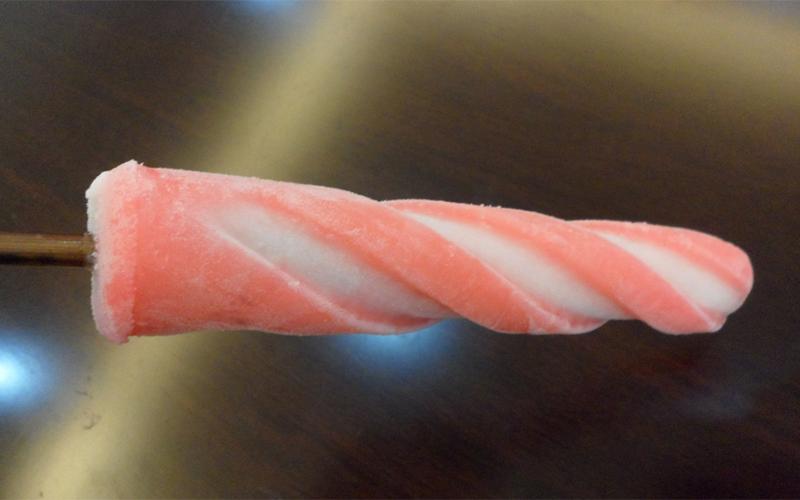

End Product Testing of ice pop mold

Stainless steel ice pop mold materials
1. Panel
Material: stainless steel 316L
Thickness: 2.5mm

2. Mold cup
Material: stainless steel 316L
Thickness: 0.8mm

Features
1. The mold is made using a welding robot to complete all welding, and the resultant mold is fully welded with an even welding seam.

2. The mold cup is precisely welded to the mold strip using a TIG welding process.

3. The mold is surface treated using an electropolishing (electrolysis) process, ensuring the surface is smooth with no marks, thus meeting European quality standards.

4. The main mold material is a 316L stainless steel, which features an outstanding corrosion resistance and hardness, thus meeting food hygiene standards. This also guarantees the mold service life.

5. The mold cup is formed using a single stamping process that requires no annealing or chemical treatments, which in turn guarantees the uniform thickness of the mold cup.

6. The mold cup volume is designed and calculated using a computer, with the cup itself cut using laser cutting equipment to ensure the size accuracy.

About Hongtai
Yongkang Hongtai Hardware & Machine Factory has more than 35 years of experience in manufacturing ice cream molds. Backed by this experience, we have created more than 1200 different mold types in various shapes and sizes, and have worked with internationally known names such as Tetra Pak, Nestle, WCB and Unilever.

Hongtai undertakes an individual, comprehensive quality inspection of the molds to ensure a smooth surface, accurate size, and outstanding electropolishing. We also confirm that every mold meets food hygiene standards through strict sanitary inspection, with the welding quality confirmed using a leak test that utilizes a penetrating agent. Quality control test certificates are available based on customer requirements, including volume control data sheets, chemical and physical analysis test certificates, dimensional tolerance and penetrating agent leak test datasheets.
